Nexis 125° Soft close Grass Hinge

Description

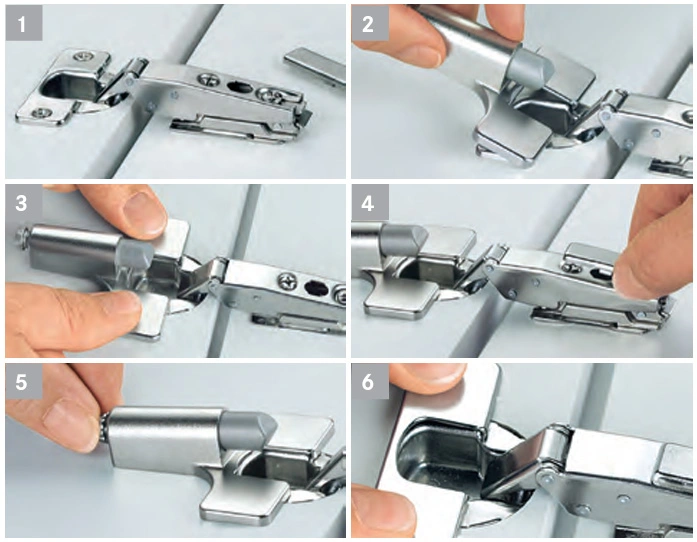

Nexis 125 degree hinge with soft close from Grass. The hinges are equipped with a proven Click-On technology in the hinge arm which forms a solid base for attaching the hinges to the cabinet without the need for any tools. Just press with a finger and the hinge locks into place on the mounting plate with an audible "click". The hinge can be detached from the Click-on mounting plate simply by unlocking it if you then need to detach the door. The hinges are delivered complete with associated dampers that provide soft-closing hinges without additional drill holes in the door or in the cabinet.

• 125° opening angle
• Optimal opening for cabinets with up to 19 mm thick sides.
• With self-closing mechanism

• 3-dimensional adjustability
• The Soft-Close effect can be adjusted as desired.

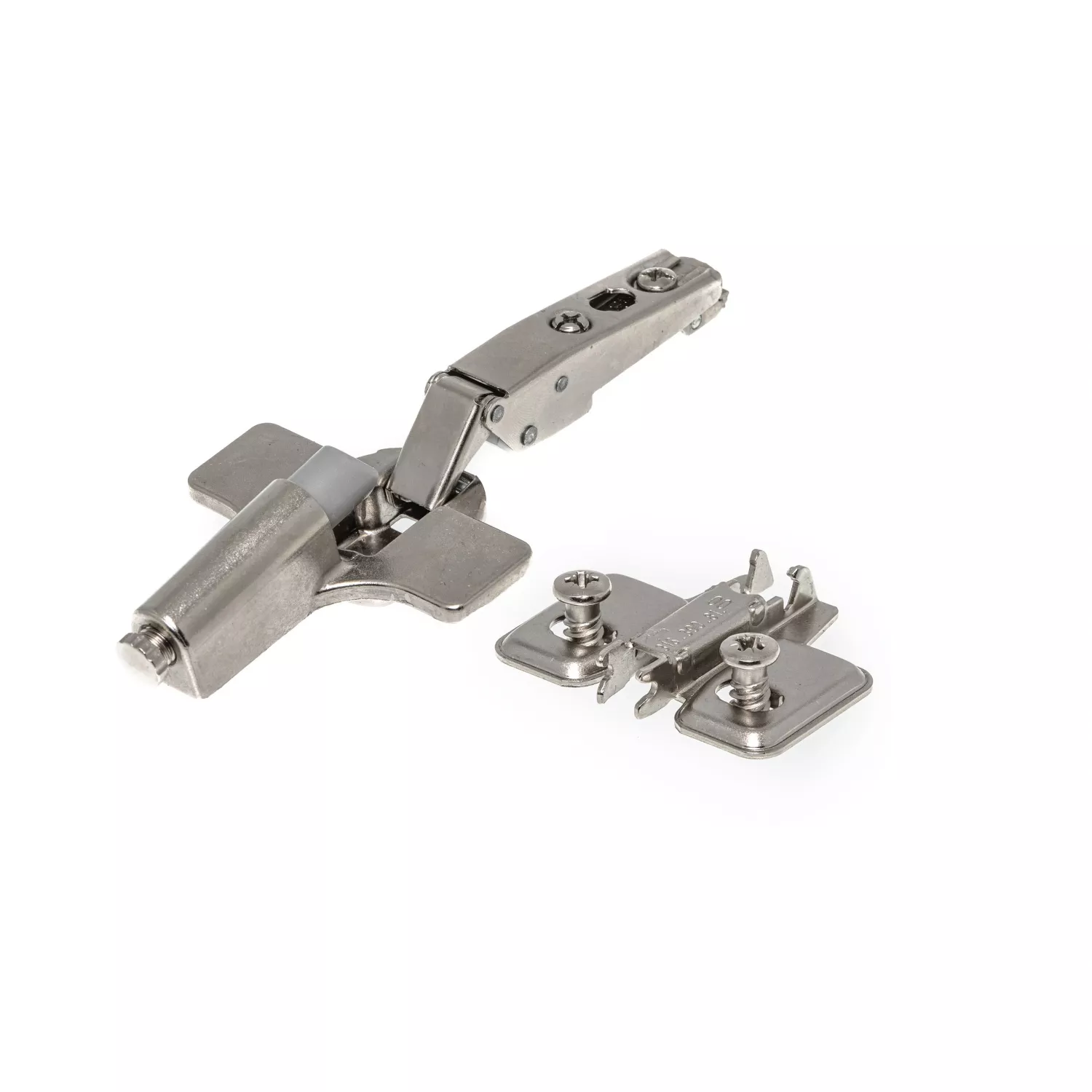

• Supplied complete with mounting plate and soft close.


Measures

Measures

More info

Material

• Nickel-plated steel

Recommended number of hinges per door

• 0-900 mm height & up to 7 kg weight: 2 hinges
• 901-2000 mm height & up to 17 kg weight: 3 hinges
• 2001-2300 mm height & up to 20kg weight: 4 hinges

Brand Information

• Grass is a market-leading supplier in hinges and closing systems for drawers and cabinet doors in kitchens. The design of their system is complex: on the one hand, the goal is to achieve pleasing movements, on the other hand, to ensure functionality, ergonomics and new innovative ideas that appeal to the consumer. Grass has been on the market since 1947 and is today one of the largest companies in the world in movement systems.
