Tiomos 110° Grass HInges

Description

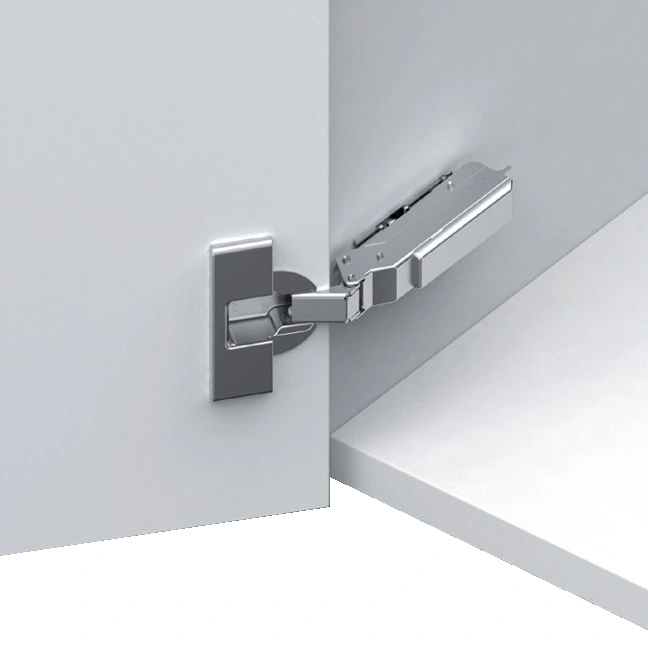

Tiomos 110 degree hinge from Grass. Integrated soft-close, a stylish design and maximum stability - Tiomo's hinges are the best hinge solution for cabinet doors in the kitchen. The hinges are equipped with a click-on technology in the hinge arm, which makes installation easier. Just press with a finger and the hinge locks onto the mounting plate with an audible "click". The hinge can then be easily detached from the Click-on mounting plate by unlocking it if you need to detach the door.

• 110° opening angle

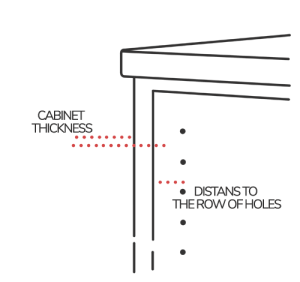

• Optimal opening for cabinets with up to 19 mm thick sides.
• With self-closing mechanism

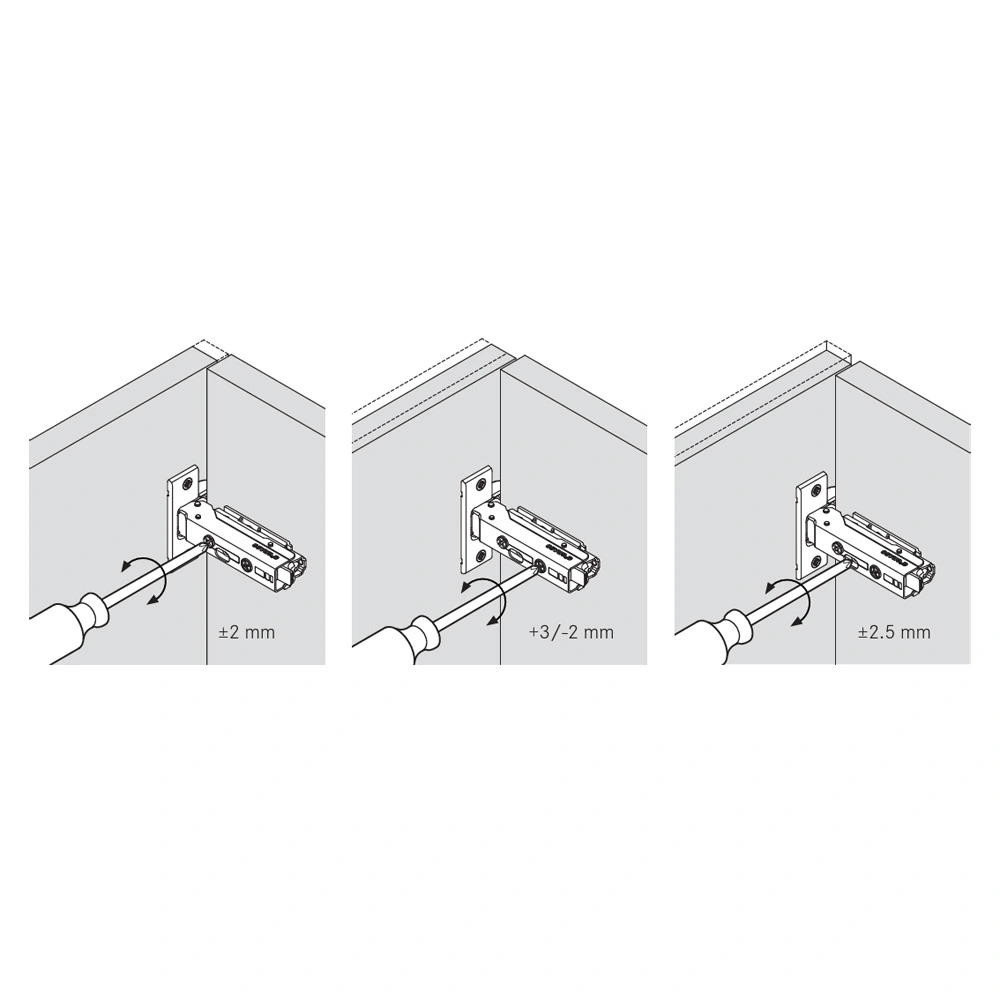

• 3-dimensional adjustability
• The soft-close effect can be adjusted as desired.
• Supplied complete with mounting plate and soft close.

Measures

Measures

More info

Material

• Nickel-plated steel

Recommended number of hinges per door

• 0-900 mm height & up to 7 kg weight: 2 hinges
• 901-2000 mm height & up to 17 kg weight: 3 hinges
• 2001-2300 mm height & up to 20kg weight: 4 hinges

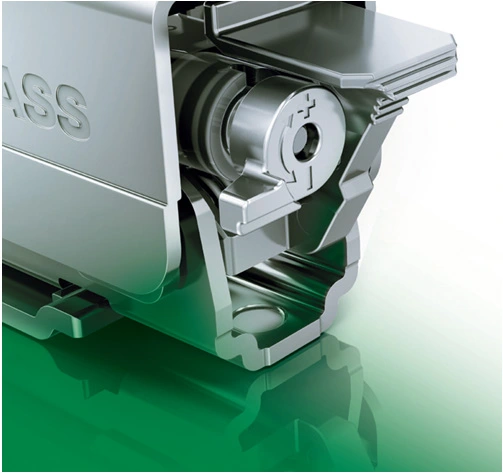

Soft-Close Adjustments

• Light setting - for small, light doors
• Medium setting - for standard doors
•  Strong setting - for large, heavy doors

Brand Information

• Grass is a market-leading supplier in hinges and closing systems for drawers and cabinet doors in kitchens. The design of their system is complex: on the one hand, the goal is to achieve pleasing movements, on the other hand, to ensure functionality, ergonomics and new innovative ideas that appeal to the consumer. Grass has been on the market since 1947 and is today one of the largest companies in the world in movement systems.
